Description

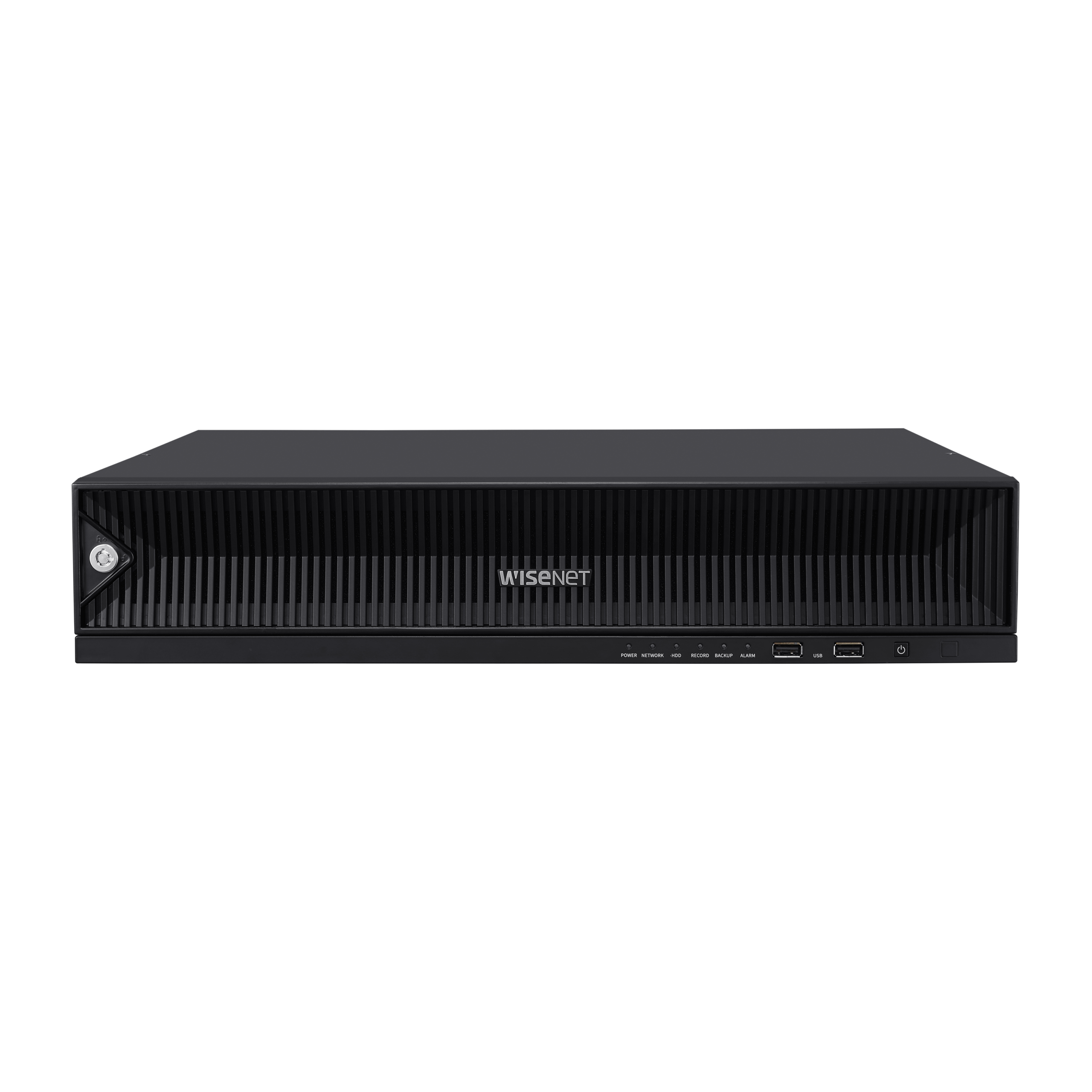

The Hanwha Vision XRN-3210RB2 is an enterprise-class 32-channel network video recorder designed for medium to large CCTV deployments. With 400Mbps recording bandwidth, 8-bay hot-swappable storage, and RAID 5/6 redundancy, it delivers reliable 24/7 recording for businesses, warehouses, and commercial properties.

KEY FEATURES:

32 Camera Channels — Connect and record up to 32 IP cameras simultaneously. Supports resolutions from CIF up to 32MP, accommodating both legacy and latest-generation cameras.

400Mbps Recording Bandwidth — High-throughput recording engine handles multiple high-resolution camera streams without frame drops. Supports distributed mode for maximum bandwidth utilisation.

8-Bay Hot-Swappable Storage — Eight SATA HDD slots supporting up to 10TB per drive (80TB total in non-RAID mode). Hot-swappable design allows drive replacement without powering down the system.

RAID 5/6 Support — Built-in hardware RAID protects your recordings against hard drive failure. RAID 5 tolerates one drive failure; RAID 6 tolerates two simultaneous failures. Critical for 24/7 surveillance where data loss is unacceptable.

Dual HDMI Output — HDMI 1 outputs at 4K (3840×2160 at 30Hz) and HDMI 2 at 1080p (1920×1080 at 60Hz). Run a main monitoring display and a secondary screen simultaneously.

AI Search — When paired with Wisenet AI cameras, enables intelligent search by object attributes (person, vehicle, face). Dramatically reduces the time needed to find specific incidents in recorded footage.

H.265 Compression Support — Records H.265, H.264, and MJPEG streams. H.265 reduces storage consumption by up to 50% compared to H.264, extending recording days significantly.

Dynamic Event Support — Automatically recognises new event types from compatible cameras without requiring NVR firmware updates. Future-proof investment.

ONVIF Compatible — Supports ONVIF Profile S for interoperability with third-party IP cameras and VMS platforms.

Mobile & Remote Access — View live and recorded footage remotely via Wisenet mobile app (iOS/Android), web browser (Chrome, Edge, Safari), or WAVE/SSM client software. Easy P2P setup via QR code.

N+1 Failover Redundancy — Supports failover configuration where a standby NVR automatically takes over recording if the primary unit fails. Enterprise-grade reliability.

SPECIFICATIONS:
• Max Channels: 32
• Max Recording Bandwidth: 400Mbps (distributed mode)
• Max Resolution: 32MP
• Compression: H.265, H.264, MJPEG
• HDD Bays: 8x SATA (up to 10TB each, 80TB max)
• RAID: RAID 5/6 (single array)
• HDMI Output: 2 (4K + 1080p)
• Ethernet: 3x RJ-45 Gigabit (LAN/WAN)
• USB: 4 (2x USB 2.0 front, 2x USB 3.0 rear)
• Alarm: 8 inputs, 4 outputs
• Audio: 32CH network audio
• Remote Users: 10 live, 3 search
• Playback: Up to 80CH simultaneous (32 local + 48 remote)
• Operating System: Embedded Linux
• Power: 100-240VAC, max 160W (with 8x 10TB HDD)
• Operating Temp: 0°C to +40°C
• Dimensions: 438 x 86 x 435mm (2U rackmount)
• Weight: 9.1kg (without HDD)
• Certifications: FCC, CE, UL, NDAA

WHAT’S IN THE BOX:
• XRN-3210RB2 NVR unit
• Power cable
• Rackmount brackets
• Quick start guide
• Hard drives sold separately

COMPATIBLE CAMERAS:
Works with all Hanwha Vision (Wisenet) IP cameras including the QND-7012R 4MP dome camera. Also compatible with any ONVIF Profile S camera from other manufacturers.

IDEAL FOR:
Commercial buildings, warehouses, retail chains with multiple cameras, industrial facilities, schools, hospitals, and any CCTV deployment with 8-32 cameras requiring enterprise-grade recording reliability in Singapore. Professional installation and configuration available from Groovit.
